Van cổng thép rèn nối ren và hàn lồng 1
Female threaded and socket welded gate valves
Application standards
Design and manufacture conform to
API 602, BS5352, ANSI B16.34
Connection ends conform to:
1)Socket welded dimension conform to ANSI B16.11;JB/T1751
2)Screw ends dimension conform to ANSI B1.20.1;JB/T7306
3)Butt-welded conform to ANSI B16.25;JB/T12224
4)Flanged ends conform to ANSI B16.5;JB79
Test and inspection conform to
API 598; GB/T113927; JB/T9092
Structure features:
Bolted bonnet, outside screw and yoke
Welded bonnet, outside screw and yoke
Materials conform to ANSI/ASTM
Main materials
A105; LF2; F5; F11; F22; 304(L); 316(L); F347; F321; F51; Monel; 20 Alloy.
Carbon steel temperature-pressure rate
CL150-285P.S.I @ 100ºF
CL300-740 P.S.I @ 100ºF
CL600-1480 P.S.I @ 100ºF
CL800-1975 P.S.I @ 100ºF
CL1500-3705 P.S.I @ 100ºF

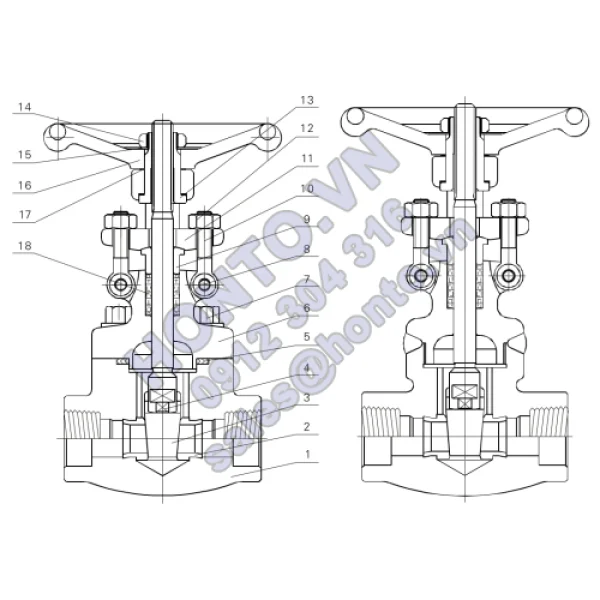

Main part material list
No
Part name
A105/F6a
A105/F6aHFS
LF2/304
F11/F6aHF
F304(L)/304(L)
F316(L)/316(L)
F51/F51
1
Body
A105
A105
LF2
F11
F304(L)
F316(L)
F51
2
Seat
410
410HF
304
410HF
304(L)
316(L)
F51
3
Wedge
F6a
F6a
F304
F6aHF
F304(L)
F316(L)
F51
4
Stem
410
410
304
410
304(L)
316(L)
F51
5
Gasket
304+
Flexible graphite
304+
Flexible graphite
304+
Flexible graphite
304+
Flexible graphite
304+
Flexible graphite
316+
Flexible graphite
316+
Flexible graphite
6
Bonnet
A105
A105
LF2
F11
F304(L)
F316(L)
F51
7
Bolt
B7
B7
L7
B16
B8(M)
B8(M)
B8M
8
Pin
410
410
410
410
304
304
304
9
Gland
410
410
304
410
304
316
F51
10
Gland eyebolt
B7
B7
L7
B16
B8(M)
B8(M)
B8M
11
Gland flange
A105
A105
LF2
F11
F304
F304
F304
12
Hex nut
2H
2H
2H
2H
8(M)
8(M)
8M
13
Stem nut
410
410
410
410
410
410
410
14
Locking nut
35
35
35
35
35
35
35
15
Nameplate
AL
AL
AL
AL
AL
AL
AL
16
Handwheel
A197
A197
A197
A197
A197
A197
A197
17
Lubricating gasket
410
410
410
410
410
410
410
18
Packing
Graphite
Graphite
Graphite
Graphite
Graphite
Graphite
Graphite
