Size:DN 40~DN 1200
Pressure:PN10/PN16/150 psi/200 psi
Standard:
Face to face:EN558-1 Series 20,API609
Flange connection:EN1092 PN6/10/16,ANSI B16.1,JIS 10K
Top flange:ISO 5211
 |  |
Details

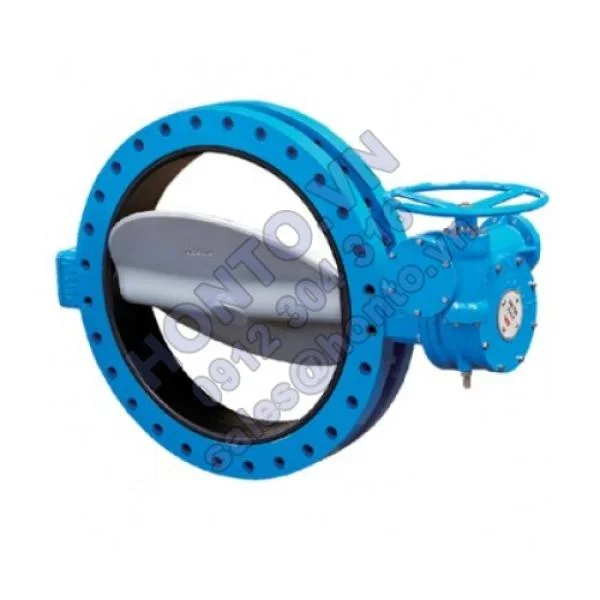

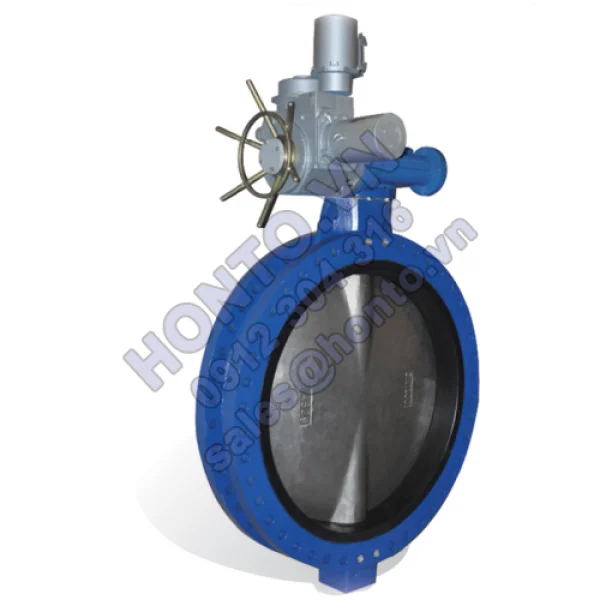

Description:
UD Series hard seated butterfly valve is Wafer pattern with flanges ,the face to face is EN558-1 20
series as wafer type.
Material of Main Parts:
Parts | Material |
Body | CI,DI,WCB,ALB,CF8,CF8M |
Disc | DI,WCB,ALB,CF8,CF8M,Rubber Lined Disc,Duplex stainless steel,Monel |
Stem | SS416,SS420,SS431,17-4PH |
Seat | NBR,EPDM,Viton,PTFE |
Taper Pin | SS416,SS420,SS431,17-4PH |
Characteristics:
1.Correcting holes are made on flange according to standard, easy correcting during the installation.
2.Through-out bolt or one-side bolt used,easy replacing and maintenance.
3. Phenolic backed seat or aluminium backed seat:Non-collapsible,stretch resistant,blow out proof,field replaceble.
Applications:
Water and waste water treatment,sea water desalination,irrigation,cooling system,electric power,sulfur
removal,petroleum refining,oilfield,mining,HAVC,etc

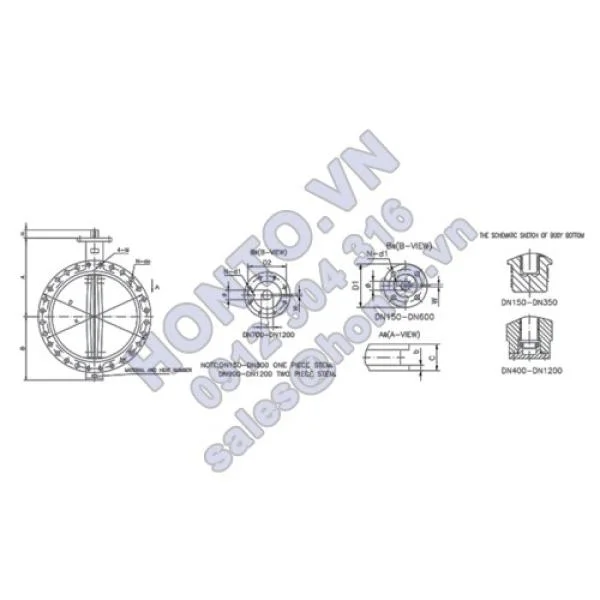

Products Parameters
DN | A | B | H | D0 | C | D | K |
| d | N-do | 4-M | b | D1 | D2 | N-d1 | F | Φ2 | W | J | |||
10 | 16 | 10 | 16 | 10 | 16 | 10 | 16 | |||||||||||||||
150 | 226 | 139 | 28 | 156 | 56 | 285 | 240 | 240 | 188 |
| 8-23 | 8-23 | ─ | ─ | 19 | 90 | 70 | 4-10 | 13 | 18.92 | 5 | 20.92 |
200 | 260 | 175 | 38 | 202 | 60 | 340 | 295 | 295 | 238 |
| 8-23 | 12-23 | ─ | ─ | 20 | 125 | 102 | 4-12 | 15 | 22.1 | 5 | 24.1 |
250 | 292 | 203 | 38 | 250 | 68 | 405 | 350 | 355 | 292 |
| 12-23 | 12-28 | ─ | ─ | 22 | 125 | 102 | 4-12 | 15 | 28.45 | 8 | 31.45 |
300 | 337 | 242 | 38 | 302 | 78 | 460 | 400 | 410 | 344 |
| 12-23 | 16-28 | ─ | ─ | 24.5 | 125 | 102 | 4-12 | 20 | 31.6 | 8 | 34.6 |
350 | 368 | 267 | 45 | 333 | 78 | 520 | 460 | 470 | 374 |
| 16-23 | 12-31 | ─ | ─ | 24.5 | 150 | 125 | 4-14 | 20 | 31.6 | 8 | 34.6 |
400 | 400 | 325 | 51 | 390 | 102 | 580 | 515 | 525 | 440 |
| 12-28 | 16-31 | 4-M24 | 4-M27 | 24.5 | 175 | 140 | 4-18 | 22 | 33.15 | 10 | 36.15 |
450 | 422 | 345 | 51 | 441 | 114 | 640 | 565 | 585 | 491 |
| 16-28 | 16-31 | 4-M24 | 4-M27 | 25.5 | 175 | 140 | 4-18 | 22 | 37.95 | 10 | 40.95 |
500 | 480 | 378 | 57 | 492 | 127 | 715 | 620 | 650 | 535 |
| 16-28 | 16-34 | 4-M24 | 4-M30 | 26.5 | 175 | 140 | 4-18 | 22 | 41.12 | 10 | 44.12 |
600 | 562 | 475 | 70 | 593 | 154 | 840 | 725 | 770 | 654 |
| 16-31 | 16-37 | 4-M27 | 4-M33 | 30 | 210 | 165 | 4-22 | 22 | 50.63 | 16 | 54.65 |
700 | 624 | 543 | 66 | 695 | 165 | 910 | 840 | 840 | 744 |
| 20-31 | 20-37 | 4-M27 | 4-M33 | 32.5 | 300 | 254 | 8-18 | 30 | 63.35 | 18 | 71.4 |
800 | 672 | 606 | 66 | 795 | 190 | 1025 | 950 | 950 | 850 |
| 20-34 | 20-41 | 4-M30 | 4-M36 | 35 | 300 | 254 | 8-18 | 30 | 63.35 | 18 | 71.4 |
900 | 720 | 670 | 110 | 865 | 200 | 1125 | 1050 | 1050 | 947 |
| 24-34 | 24-41 | 4-M30 | 4-M36 | 37.5 | 300 | 254 | 8-18 | 34 | 75 | 20 | 84 |
1000 | 800 | 735 | 135 | 965 | 216 | 1255 | 1160 | 1170 | 1053 |
| 24-37 | 24-44 | 4-M33 | 4-M39 | 40 | 300 | 254 | 8-18 | 34 | 85 | 22 | 95 |
1100 | 870 | 806 | 150 | 1065 | 251 | 1355 | 1270 | 1270 | 1153 |
| 28-37 | 28-44 | 4-M33 | 4-M39 | 42.5 | 350 | 298 | 8-22 | 34 | 95 | 25 | 105 |
1200 | 940 | 878 | 150 | 1160 | 254 | 1485 | 1380 | 1390 | 1264 |
| 28-41 | 28-50 | 4-M36 | 4-M45 | 45 | 350 | 298 | 8-22 | 34 | 105 | 28 | 117 |
LƯU Ý:
Số liệu, hình ảnh về Cấu tạo Van cánh bướm điều khiển bằng vô lăng chỉ mang tính chất tham khảo, catalogue này có thể đã thay đổi mà không kịp thông báo trước tới Quý khách hàng. CẨN THẬN XÁC NHẬN LẠI KHI MUA HÀNG!
