Phụ kiện đường ống inox vi sinh HONTO (28)

Dimension/Kích thước (mm)

Size/Cỡ

L1

R

D

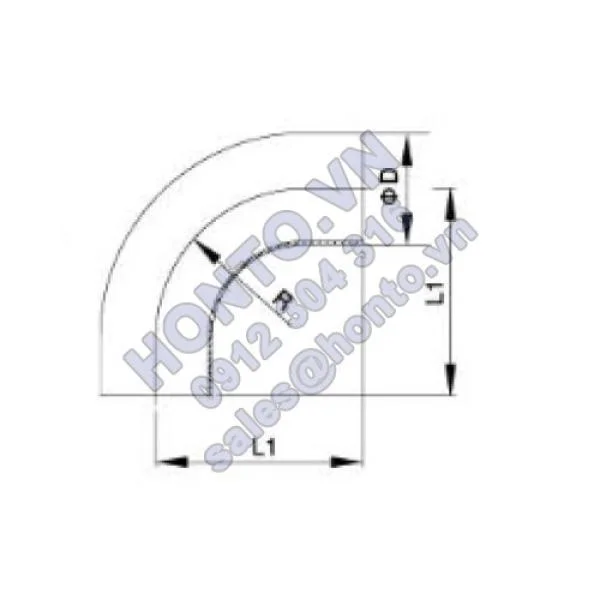

90⁰ Welded Elbow BS4825 No.55-123

Cút 90⁰  inox vi sinh BS4825 nối hàn

1”

1^1/2”

2”

2^1/2”

3”

4”

43.5

63.5

88.5

113.5

133.5

173.5

38.1

57.2

76.2

95.3

114.3

153.4

25.4

38.1

50.8

63.5

76.2

101.6

Size/Cỡ

L1

R

D

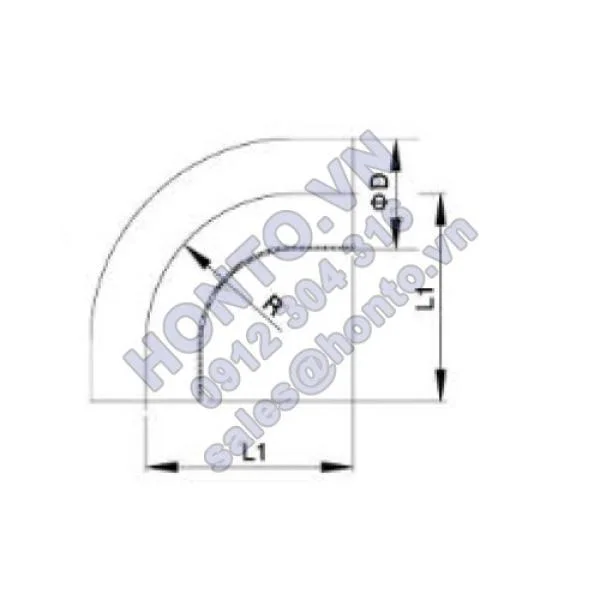

90⁰ Welded Elbow with straight ends BS4825 No.55-124

Cút 90⁰  inox vi sinh BS4825 nối hàn loại kéo dài

1”

1^1/2”

2”

2^1/2”

3”

4”

65

85

110

135

155

195

38.1

57.2

76.2

95.3

114.3

152.4

25.4

38.1

50.8

63.5

76.2

101.6

Size/Cỡ

L1

B

R

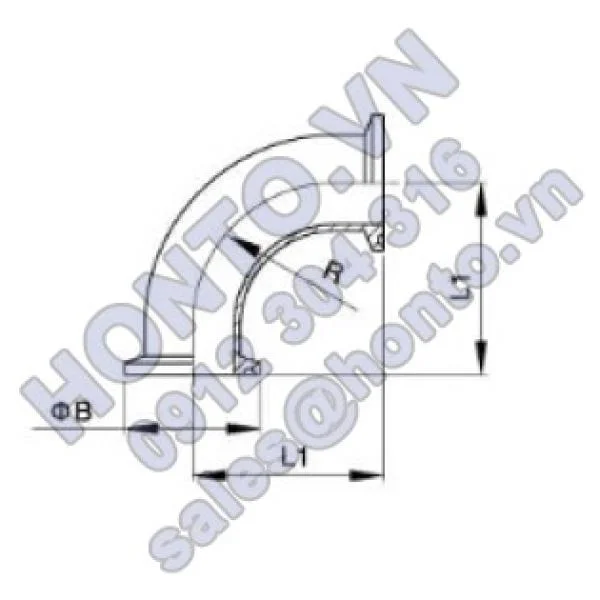

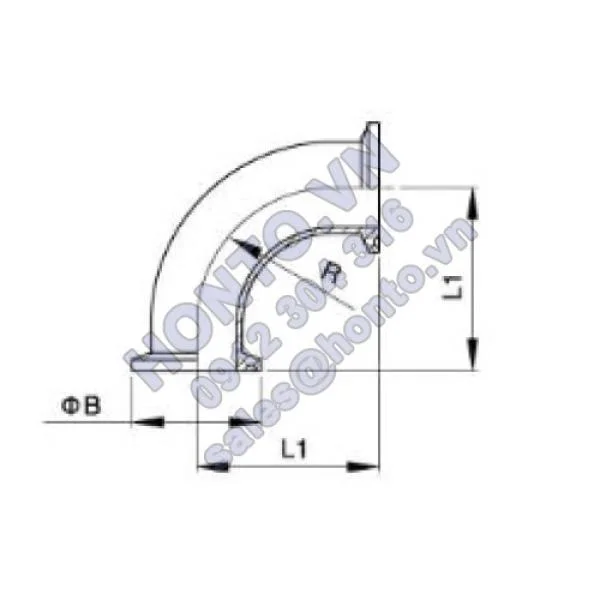

90⁰ Clamped Elbow BS4825 No.55-125

Cút 90⁰  inox vi sinh BS4825 nối clamp

1”

1^1/2”

2”

2^1/2”

3”

4”

65

85

110

135

155

195

50.5

50.5

64

77.5

91

119

38.1

57.2

76.2

95.3

114.3

152.4

Size/Cỡ

L1

D

R

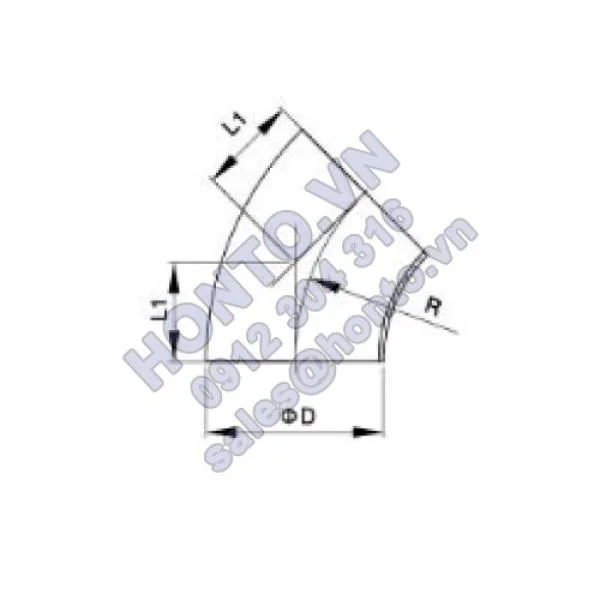

45⁰ Short Welded Elbow BS4825 No.55-126

Cút 45⁰  inox vi sinh BS4825 nối hàn loại ngắn

1”

1^1/2”

2”

2^1/2”

3”

4”

15.8

23.7

31.8

39.6

47.5

63.2

25.4

38.1

50.8

63.5

76.2

101.6

38.1

57.2

76.2

95.3

114.3

152.4
