Phụ kiện đường ống inox vi sinh HONTO (27)

Dimension/Kích thước (mm)

Size/Cỡ

L1

D

T

Long Welded Tee AS No.54-120

Tê inox vi sinh AS nối hàn loại dài

1/2”

3/4”

1”

1^1/4”

1^1/2”

2”

2^1/2”

3”

4”

49.1

58.6

68.1

77.7

87

106.2

125

144.2

182.4

12.7

19.1

25.4

31.8

38.1

50.8

63.5

76.2

101.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

2.0

Size/Cỡ

L1

D

T

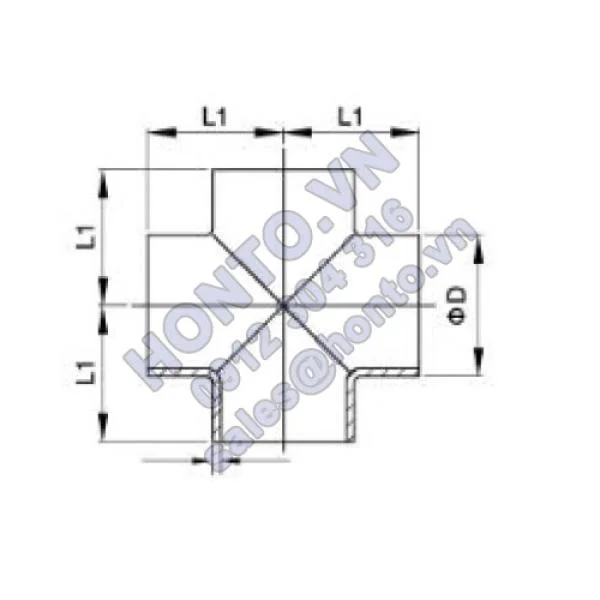

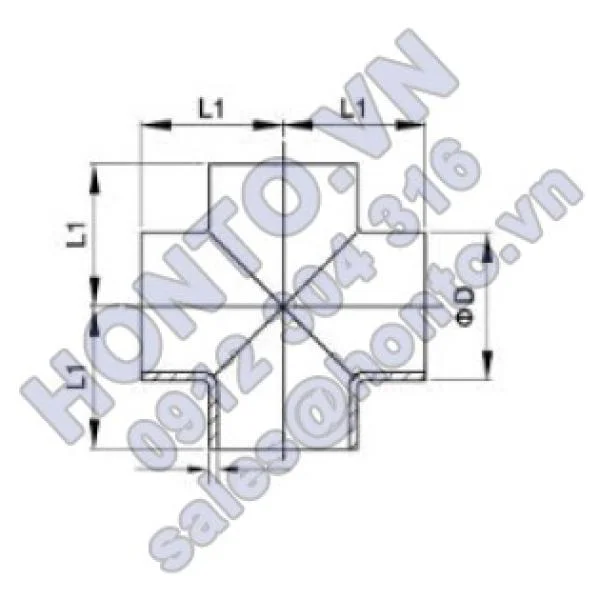

Short Welded Cross AS No.54-121

Chữ thập inox vi sinh AS loại ngắn

1/2”

3/4”

1”

1^1/4”

1^1/2”

2”

2^1/2”

3”

4”

19.1

28.6

38.1

47.7

57

76.2

95

114.2

152.4

12.7

19.1

25.4

31.8

38.1

50.8

63.5

76.2

101.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

2.0

Size/Cỡ

A

B

D

T

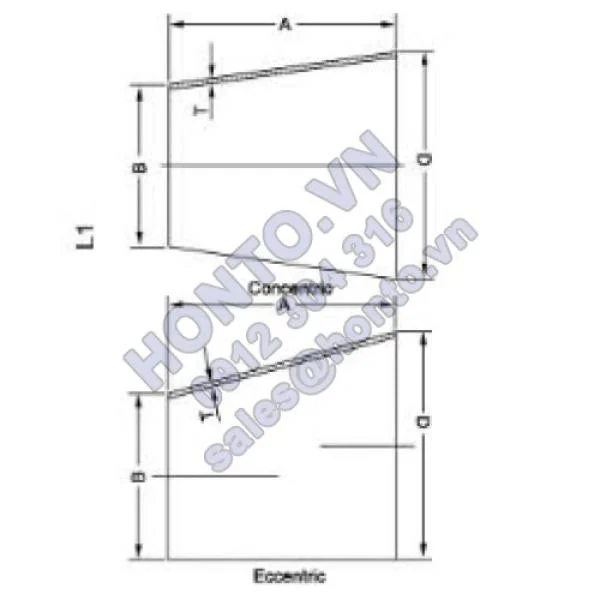

Welded Reducer AS No.54-122

Côn thu bầu giảm inox vi sinh AS nối hàn

3/4”x1/2”

1”x1/2”

1”x3/4”

1^1/4”x3/4”

1^1/4”x1”

1^1/2”x3/4”

1^1/2”x1

2”x1/2”

2” x3/4”

2”x1”

2”x1^1/4”

2”x1^1/2”

2^1/2” x1”

2^1/2” x1^1/4”

2^1/2” x1^1/2”

2^1/2” x2”

3”x1”

3”x1^1/4”

3”x1^1/2”

2”x2”

3”x2^1/2”

4”x1”

4”x1^1/4”

4”x1^1/2”

4”x2”

4”x2^1/2”

4”x3”

19.1

25.4

25.4

31.8

31.8

38.1

38.1

50.8

50.8

50.8

50.8

50.8

63.5

63.5

63.5

63.5

76.2

76.2

76.2

76.2

76.2

101.6

101.6

101.6

101.6

101.6

101.6

12.7

12.7

19.1

19.1

25.4

19.1

25.4

12.7

19.1

25.4

31.8

38.1

25.4

31.8

38.1

50.8

25.4

31.8

38.1

50.8

63.5

25.4

31.8

38.1

50.8

63.5

76.2

19.1

25.4

25.4

31.8

31.8

38.1

38.1

50.8

50.8

50.8

50.8

50.8

63.5

63.5

63.5

63.5

76.2

76.2

76.2

76.2

76.2

101.6

101.6

101.6

101.6

101.6

101.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

2.0

2.0

2.0

2.0

2.0

2.0
