Phụ kiện đường ống inox vi sinh HONTO (25)

Dimension/Kích thước (mm)

Size/Cỡ

L1

D

T

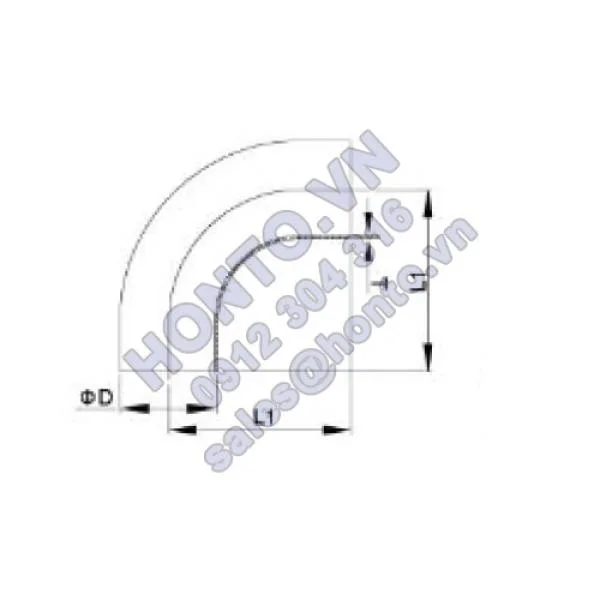

90⁰ Long Welded Elbow with Straight ends AS No.52-113

Cút 90⁰ inox vi sinh AS nối hàn loại dài

1/2”

3/4”

1”

1^1/4”

1^1/2”

2”

2^1/2”

3”

4”

49.1

58.6

68.1

77.7

87

106.2

125

144.2

182.4

12.7

19.1

25.4

31.8

38.1

50.8

63.5

76.2

101.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

2.0

Size/Cỡ

L1

D

T

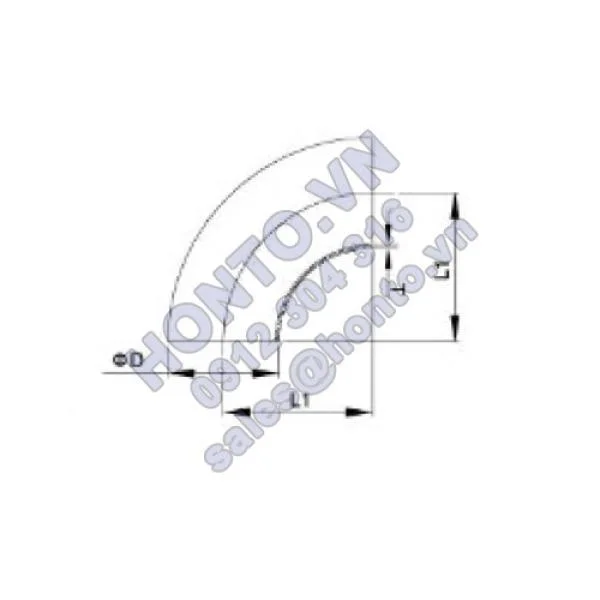

90⁰ Short Welded Elbow AS No.52-114

Cút 90⁰ inox vi sinh AS nối hàn loại ngắn

1/2”

3/4”

1”

1^1/4”

1^1/2”

2”

2^1/2”

3”

4”

19.1

28.6

38.1

47.7

57

76.2

95

114.2

153.4

12.7

19.1

25.4

31.8

38.1

50.8

63.5

76.2

101.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

2.0

Size/Cỡ

L1

D

T

45⁰ Long Welded Elbow AS No.52-115

Cút 45⁰ inox vi sinh AS nối hàn loại dài

1/2”

3/4”

1”

1^1/4”

1^1/2”

2”

2^1/2”

3”

4”

30

30

30

30

30

30

30

30

 30

12.7

19.1

25.4

31.8

38.1

50.8

63.5

76.2

101.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

 2.0
