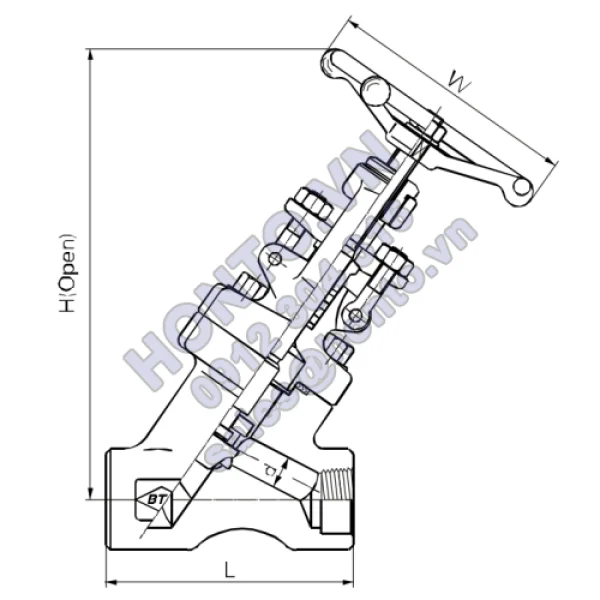

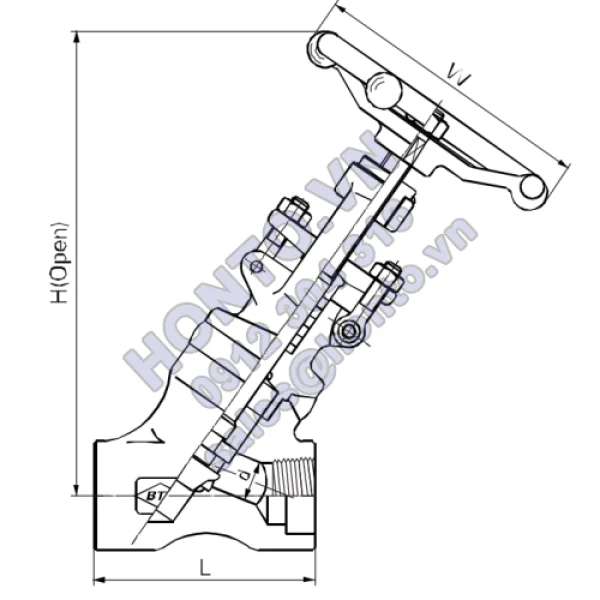

Welded bonnet, full port & reducing port outside screw and yoke (OS&Y)
Threaded, butt-welded or socket welded ends; design to BS5352
Specification
(NPS)
R.P
-
1/2
3/4
1
1 ¼
1 ½
2
2 ½
3
F.P
1/4
3/8
1/2
3/4
1
1 ¼
1 ½
2
2 ½
Face to face
L
98
98
98
111
140
140
155
170
Handwheel diameter
W
100
100
100
125
160
160
180
200
Height
H
180
180
180
188
280
280
295
350
Flow prot dimenstion
d
7
9
13
17.5
23
30
35
46
Weight (kg)
2.6
2.6
3.8
3.6
9.3
9.3
14
19.6
CL800
Welded bonnet, full port & reducing port outside screw and yoke (OS&Y)
Threaded, butt-welded or socket welded ends; design to BS5352
Specification
(NPS)
R.P
-
1/2
3/4
1
1 ¼
1 ½
2
2 ½
3
F.P
1/4
3/8
1/2
3/4
1
1 ¼
1 ½
2
2 ½
Face to face
L
98
98
98
111
140
140
155
170
Handwheel diameter
W
100
100
100
125
160
160
180
200
Height
H
180
180
180
188
280
280
295
350
Flow prot dimenstion
d
7
9
13
17.5
23
30
35
46
Weight (kg)
1.8
1.8
2.0
3.5
8.0
8.0
12
19.5
CL900-CL1500

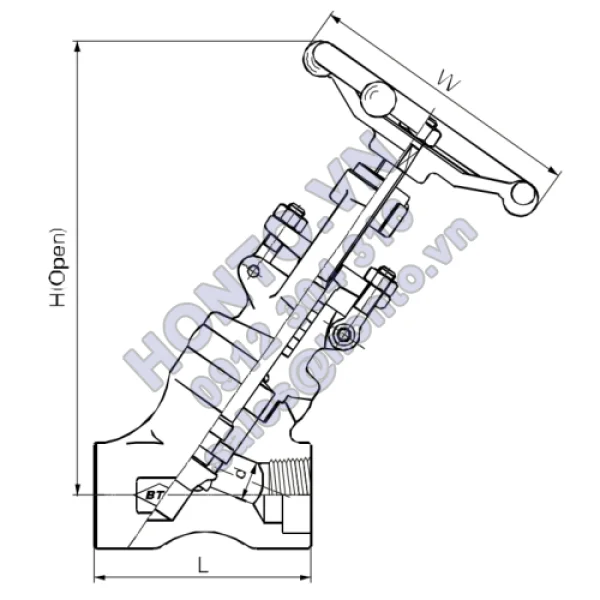

Bolted bonnet, full port&reducing port outside screw and yoke (OS&Y)
Threaded, butt-welded or socket welded ends; design to BS53522
Specification (NPS)
F.P
3/8
1/2
3/4
1
1 ¼
1 ½
2
2 ½
Face to face
L
98
111
111
140
140
155
170
Handwheel diameter
W
100
100
125
160
160
180
200
Height
H
175
175
215
215
254
305
305
Flow prot dimenstion
d
9
12
15
20
28
32
40
Weight (kg)
2.6
4.6
4.6
9.3
9.3
14
19.6
CL900-CL1500

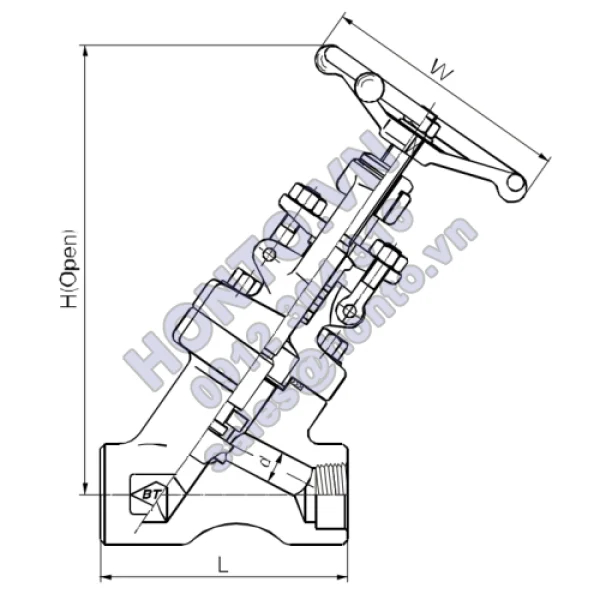

Welded bonnet, full port&reducing port outside screw and yoke (OS&Y)
Threaded, butt-welded or socket welded ends; design to BS53522
Specification (NPS)
F.P
3/8
1/2
3/4
1
1 ¼
1 ½
2
2 ½
Face to face
L
98
111
111
140
140
155
170
Handwheel diameter
W
100
100
125
160
160
180
200
Height
H
175
207
207
280
280
295
350
Flow prot dimenstion
d
9
12
15
20
28
32
40
Weight (kg)
1.8
3.5
3.5
8.0
8.0
12
16
