Van bướm tay kẹp ty đơn không chốt nối lug

  • Dòng sản phẩm: Van inox công nghiệp, Van bướm inox
  • Số lượng sản phẩm trong kho: 100
Liên hệ

Product introduction

Detailed

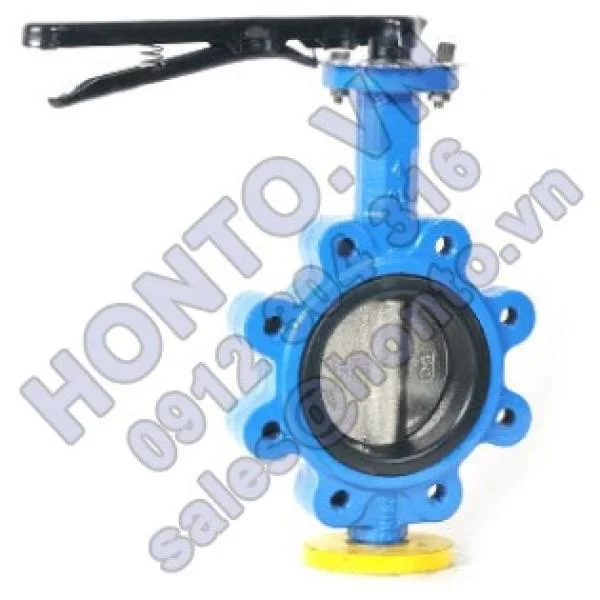

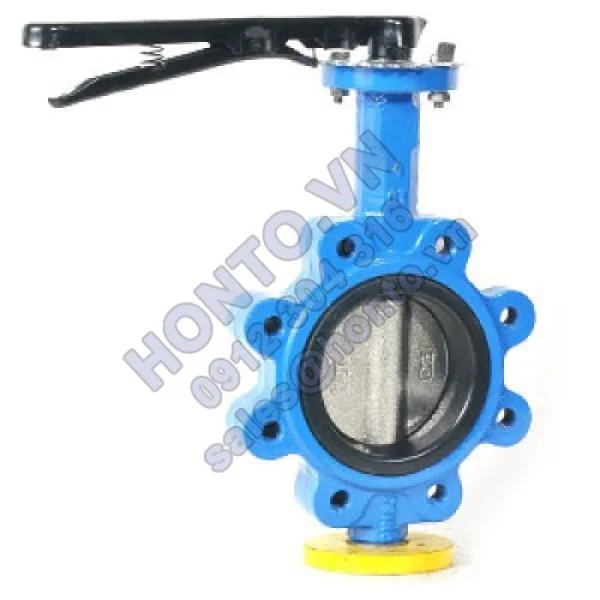

One stem no-pin lug butterfly valve

Size Range: 2~8"(DN50~DN200)

Pressure: PN10, PN16, Class125

Body Materials: Cast Iron, Ductile Iron, WCB , Stainless Steel, Bronze

Seat Materials: NBR, EPDM, VITON, PTFE

Disc Materials: Ductile Iron, WCB, CF8,CF8M, Al-bronze C958

Stem Materials: SS416, SS304, SS316

End Connection: Lug

Operate: Manual, Worm gear, Pneumatic, Electric-Motorized

Disc type: With-pin, One stem no-pin, Double stem no-pin.

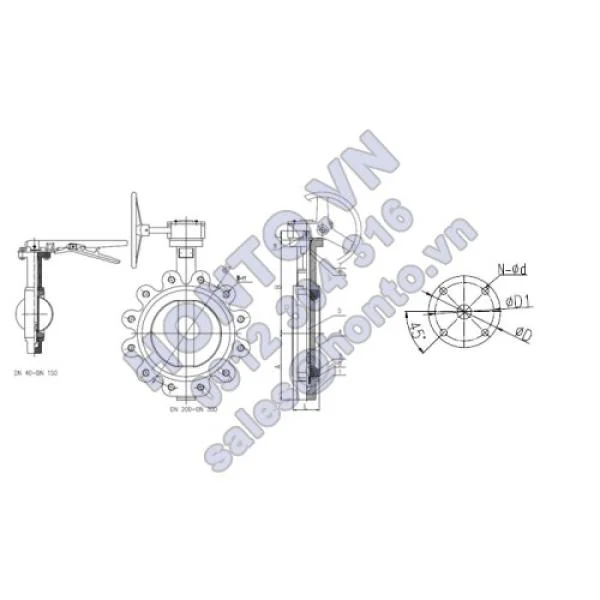

SIZE

A

B

C

L

ANSI 150B

DIN PN 10

DIN PN 16

JIS 10K

ISO 5211

Top Flange

mm

in

øK

N-M

øK

N-M

øK

N-M

øK

N-M

øD

øD1

N-ød

40

1.5"

70

164

32

33

98.5

4-1/2"-13UNC-2B

110

4-M16

110

4-M16

105

4-M16

65

50

4-ø8

F05

50

2"

80

169

32

43

120.6

4-5/8"-11UNC-2B

125

4-M16

125

4-M16

120

4-M16

65

50

4-ø8

F05

65

2 1/2"

89

176

32

46

139.7

4-5/8"-11UNC-2B

145

4-M16

145

4-M16

140

4-M16

65

50

4-ø8

F05

80

3"

95

183

32

46

152.4

4-5/8"-11UNC-2B

160

8-M16

160

8-M16

150

8-M16

65

50

4-ø8

F05

100

4"

114

201

32

52

190.5

8-5/8"-11UNC-2B

180

8-M16

180

8-M16

175

8-M16

90

70

4-ø10

F07

125

5"

127

214

32

56

215.9

8-3/4"-10UNC-2B

210

8-M16

210

8-M16

210

8-M20

90

70

4-ø10

F07

150

6"

139

229

32

56

241.3

8-3/4"-10UNC-2B

240

8-M20

240

8-M20

240

8-M20

90

70

4-ø10

F07

200

8"

175

257

45

60

298.4

8-3/4"-10UNC-2B

295

8-M20

295

12-M20

290

12-M20

125

102

4-ø12

F10

250

10"

203

280

45

68

361.9

12-7/8"-9UNC-2B

350

12-M20

355

12-M24

355

12-M22

125

102

4-ø12

F10

300

12"

242

327

45

78

431.8

12-7/8"-9UNC-2B

400

12-M20

410

12-M24

400

16-M22

125

102

4-ø12

F10

One stem no-pin lug butterfly valve Features

Single Eccentric Disc-Shaft

Anti-Blow Out Stem

Bi-Directional

Fire safe Design

Low Friction Body Seat

Zero Leakage

Adoptive Standards

Valve Design: API 609, MSS SP-67

Face To Face: API 609, MSS SP-67, DIN3202, BS EN558-1

Pressure Test: API 598

Flange Drilling: ANSI B16.1 class125, BS4504 PN10/PN16, DIN2501 PN10/PN16

Top Flange: ISO5211

Standard Test

Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.

Seat Test: 1.1 times the working pressure with water.

Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.

Special Test: On request, any other test can be carried out according to special instruction by client.

Application

● Water Treatment Plant

● Drilling Rigs

● Paper Industry

● Gas Plant

● Sugar Industry

● Cooling Water Circulation

● Breweries

● Heating & Air Conditioning

● Chemical Industry

● Pneumatic Conveyors

● Waste Effluent Treatment Plant

● Compressed Air

LƯU Ý:

Số liệu, hình ảnh về Van bướm tay kẹp ty đơn có chốt nối lug chỉ mang tính chất tham khảo, catalogue này có thể đã thay đổi mà không kịp thông báo trước tới Quý khách hàng. CẨN THẬN XÁC NHẬN LẠI KHI MUA HÀNG!
