Size:DN 40~DN 1200
Pressure:PN10/PN16/150 psi/200 psi
Standard:
Face to face:EN558-1 Series 20,API609
Flange connection:EN1092 PN6/10/16,ANSI B16.1,JIS 10K
Top flange:ISO 5211
 |
 |
 |
Details
Description:

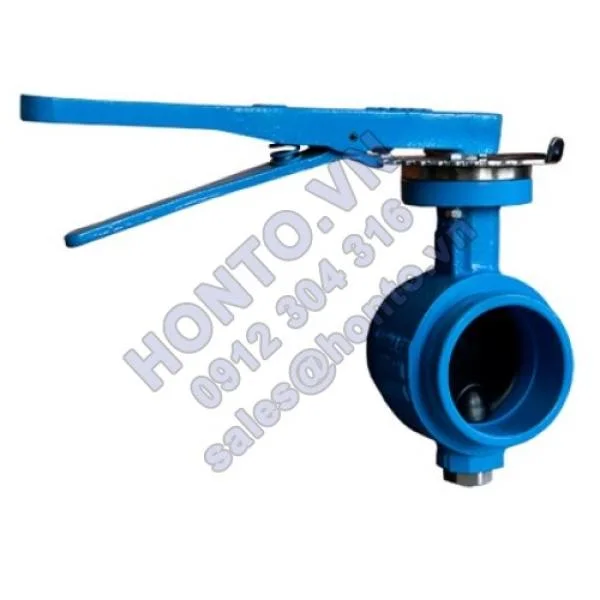

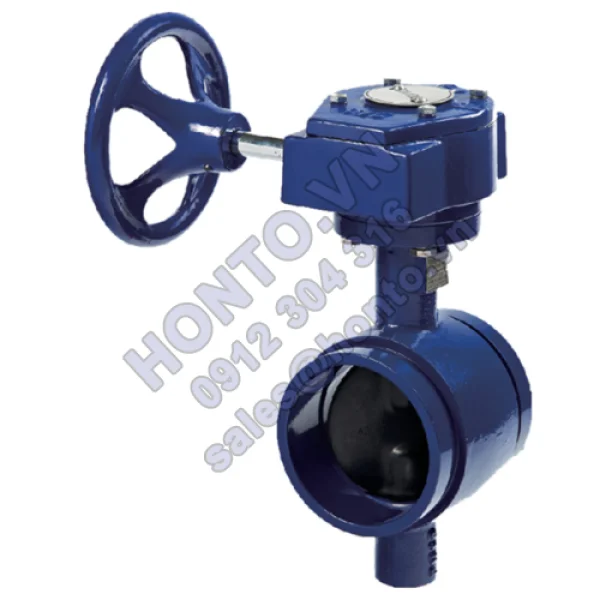

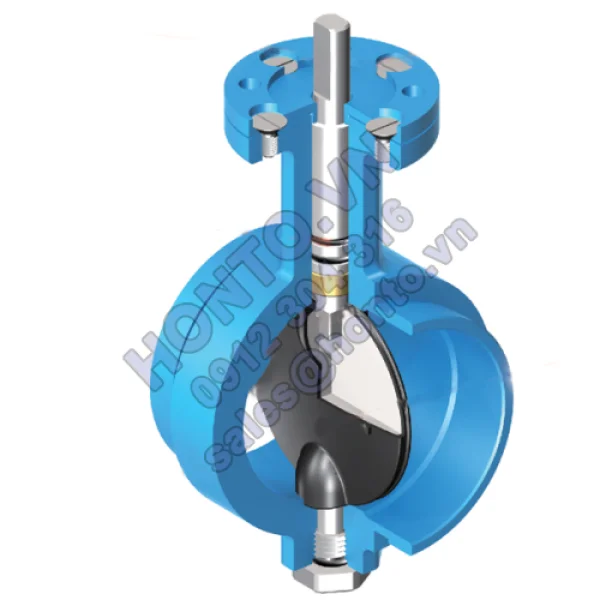

GD Series grooved end butterfly valve is a grooved end bubble tight shutoff butterfly valve with outstanding flow characteristics. The rubber seal is molded onto the ductile iron disc, in order to allow for maximum flow potential. It offers economical, efficient, and reliable service for grooved end piping applications. It is easily installed with two grooved end couplings.
Typical application:
HVAC, filtering system, etc.
Products Parameters
|
Size |
A |
B |
D |
D1 |
D2 |
L |
H |
E |
F |
G |
G1 |
I |
P |
W |
U |
K |
Φ1 |
Φ2 |
Weight (kg) |
|
|
mm |
inch |
|||||||||||||||||||
|
50 |
2 |
98.3 |
61 |
51.1 |
78 |
35 |
32 |
9.53 |
50 |
57.15 |
60.33 |
81.5 |
15.88 |
50.8 |
9.52 |
49.5 |
77 |
7 |
12.7 |
2.6 |
|
65 |
2.5 |
111.3 |
65 |
63.2 |
92 |
35 |
32 |
9.53 |
50 |
69.09 |
73.03 |
97.8 |
15.88 |
63.5 |
9.52 |
61.7 |
77 |
7 |
12.7 |
3.1 |
|
80 |
3 |
117.4 |
75 |
76 |
105 |
35 |
32 |
9.53 |
50 |
84.94 |
88.9 |
97.8 |
15.88 |
76.2 |
9.52 |
74.5 |
77 |
7 |
12.7 |
3.5 |
|
100 |
4 |
136.7 |
90 |
99.5 |
132 |
55 |
32 |
9.53 |
70 |
110.08 |
114.3 |
115.8 |
15.88 |
101.6 |
11.1 |
98 |
92 |
10 |
15.88 |
5.4 |
|
150 |
6 |
161.8 |
130 |
150.3 |
185 |
55 |
45 |
9.53 |
70 |
163.96 |
168.3 |
148.8 |
15.88 |
152.4 |
17.53 |
148.8 |
92 |
10 |
25.4 |
10.5 |
|
200 |
8 |
196.9 |
165 |
200.6 |
239 |
70 |
45 |
11.1 |
102 |
214.4 |
219.1 |
133.6 |
19.05 |
203.2 |
20.02 |
198.8 |
125 |
12 |
28.58 |
16.7 |
|
250 |
10 |
228.6 |
215 |
250.7 |
295 |
70 |
45 |
12.7 |
102 |
368.28 |
273.1 |
159.8 |
19.05 |
254 |
24 |
248.8 |
125 |
12 |
34.93 |
27.4 |
|
300 |
12 |
266.7 |
258 |
301 |
350 |
70 |
45 |
12.7 |
102 |
318.29 |
323.9 |
165.1 |
19.05 |
304.8 |
26.92 |
299.1 |
125 |
12 |
38.1 |
37.2 |
LƯU Ý:
Số liệu, hình ảnh về Cấu tạo Van bướm inox nối nhanh chỉ mang tính chất tham khảo, catalogue này có thể đã thay đổi mà không kịp thông báo trước tới Quý khách hàng. CẨN THẬN XÁC NHẬN LẠI KHI MUA HÀNG!
